25kW mobile CHAdeMO fast DC charger

Model No.︰CHR-25Q
Brand Name︰electway
Country of Origin︰China
Unit Price︰US $ 4800 / pc
Minimum Order︰1 pc
Share on:

 Total 20 Related Items

Product Description

Place Order E-mail : [email protected]

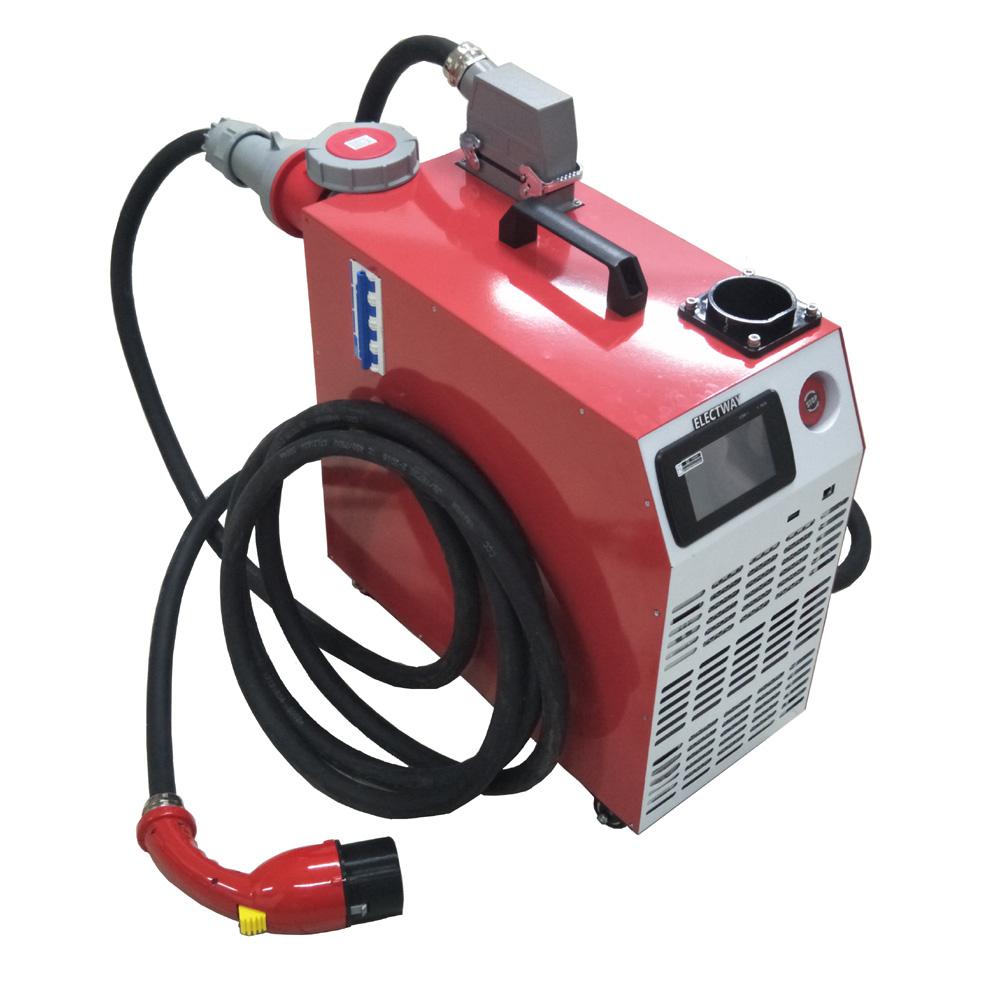

25kW CHAdeMO fast DC charger

Our CHR-Q series Mini Fast DC charger for electric car is the ideal final solution for frequently use your EV in one day.It can make your EV
run more than 500 miles range by charging sereral times, and each times just need within 1 hour.This fast charger available in most industial
facilities by AC power sockets(380V,3 phase).This device can let your EV from 30% SOC to 80% SOC in 30 min.This portable with wheels
cabinet can be on board and no need install and commissioning,Just press some screen soft botton then can start to work.When the SOC get
80% around, then it will be stop automatically.And the Tesla adapter is an optional accessary then by use this device can let your tesla EV get
high speed charging from the CHAdeMO charger.Our fast charger is very suitable for comercial and private family applications: firms,dealer
workshops,car-sharing bases or car rental company, e-taxi company,

model CHR-25Q
input voltage 220/380/400/415/440 ±15%  VAC,3Φ3L+PE3Φ3L+N+PE
input frequency 50/60Hz±10%
input power factor ≥0.95
input THD current ≤5%
support battery   LiFePO4,li-ion,Lead acid etc
output voltage 50-500VDC
output power 0-25kW
output current 0-66A
output voltage accuracy ±0.1%
output current accuracy ±0.1%
output ground protection   support
HMI and command unit LCD touch display
emergency stop  support
overall efficiency 93%
support protocol    GB,CHAdeMO,SAE,Modbus etc
parallel operation  support parallel operation
insulation test Input&Output to Ground 1500V,Control Circuit to Ground 500V
protection degree IP23 indoor / IP55 outdoor
overall weight 36kg
standard GBEN 61851; EN61000; JEVS; UL2202, 2231-1, 2231-2 ect


 Products catalogue download

 User manual  download

Payment Terms︰TT
Product Image
